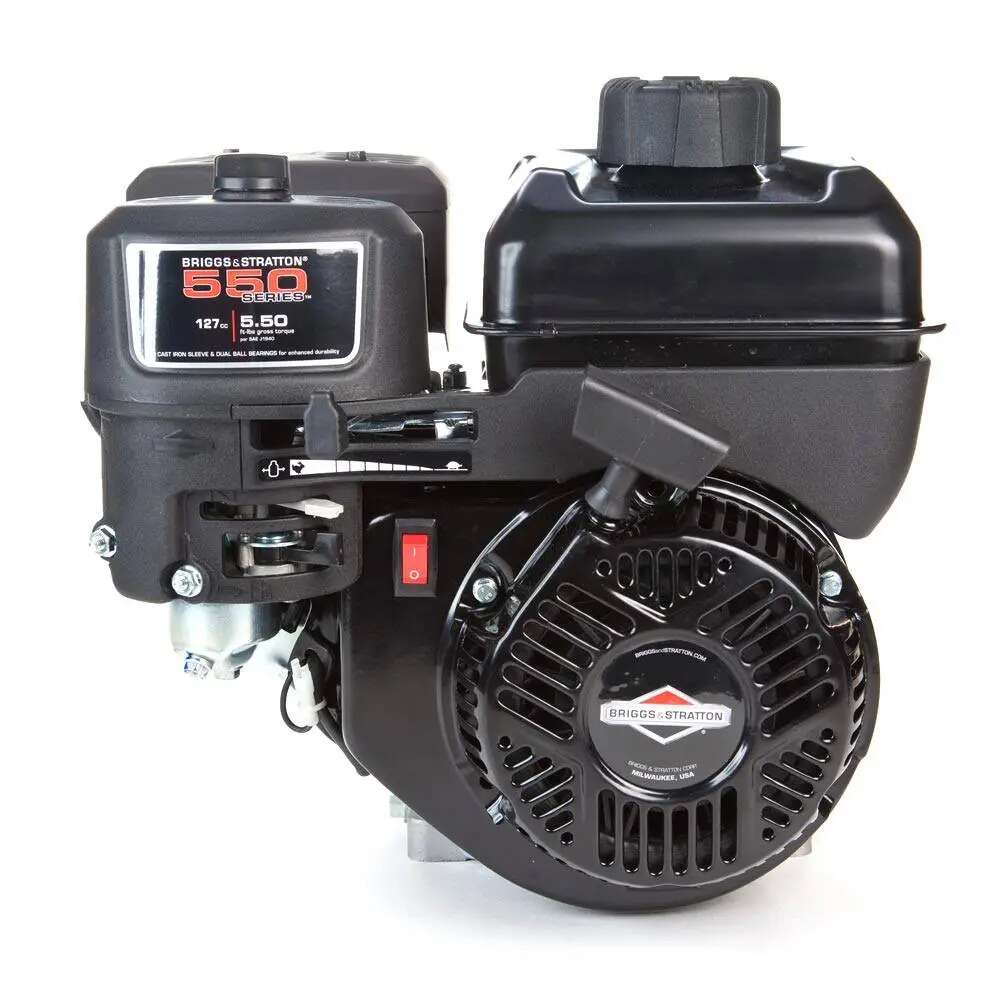

Briggs Stratton 83132 1035 F1 Horizontal Engine
Briggs Stratton 83132-1035-F1 horizontal 550 Series engine is 127cc and puts out 5.50 gross torque. This OHV utility engine has a 3/4″ x 2-27/64″ crankshaft. It has a recoil start and is equipped with a muffler.
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 83132-1035-F1 |
| WARRANTY | 2 Year |
| SHIPPING WEIGHT | 35 |
| DISPLACEMENT | 127cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2-27/64″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2-27/64″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL TANK | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3600 |
| CHARGING SYSTEM | None |
| FLYWHEEL | Heavy |
| PTO HEIGHT | 4 – 11/64 |
