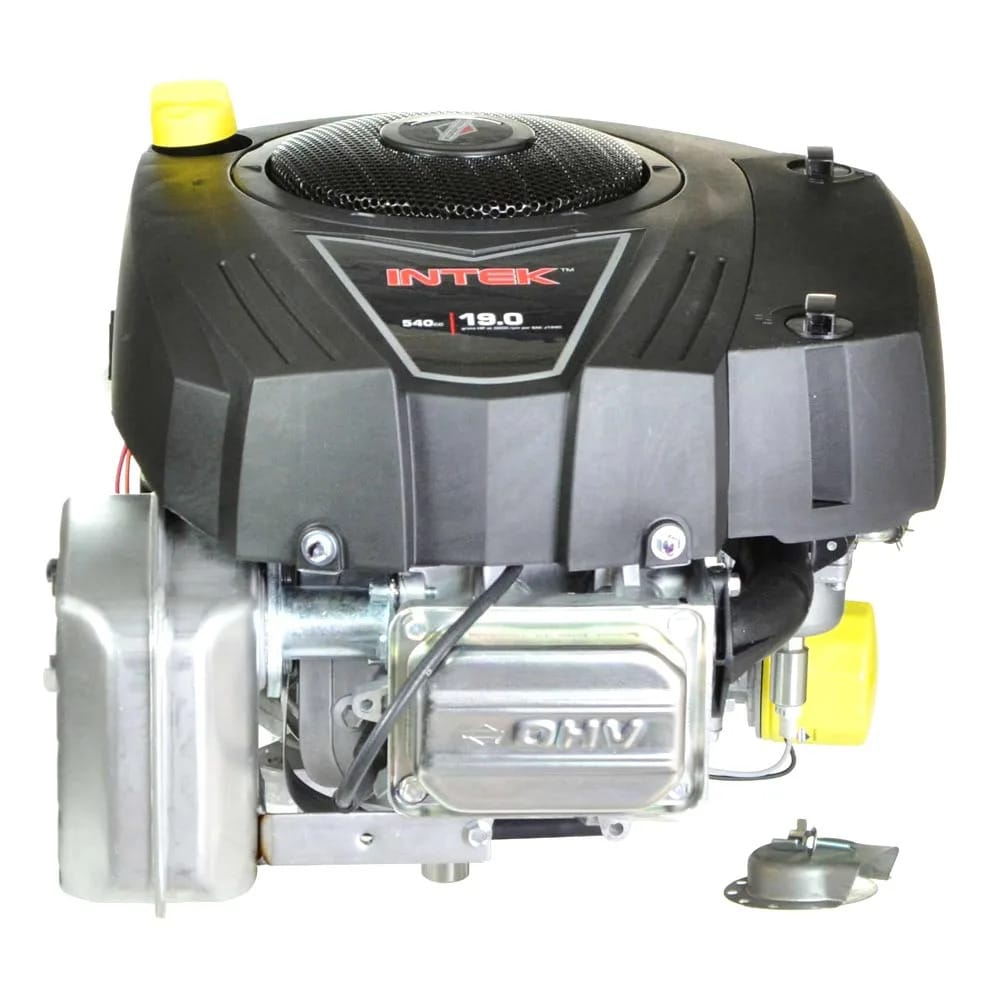

Briggs Stratton Intek 33S877 0019 G1 Engine Replaces 33R877 0003 G1
Briggs Stratton 33S877-0019-G1 vertical OHV Intek engine is 540cc. This single cylinder Briggs Stratton Intek has a 1″ x 3-5/32″ crankshaft. The engine has a 12V electric start with a 9A alternator. It is equipped with an oil pump and oil filter, fuel pump and muffler. The 33R877-0003-G1 replaces model 33R877-0003-G1 and 331977-0001-G1.
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 33S877-0019-G1 |
| REPLACES MODELS | 33R877-0003-G1, 31M877-0110-E1, 31M977-0111-E1, 31M977-0112-E1, 31M977-0114-E1, 31N607-0765-B1, 31N677-0554-B2, 31N807-0440-E1, 31P677-0113-B1, 31P677-0113-E1, 31P677-0113-G1, 31P677-0116-B1, 31P677-0117-B1, 31P677-0117-G1, 31P677-0130-B1, 31P677-0130-E1, 31P677-0130-E2, 31P677-0131-B1, 31P677-0131-B2, 31P677-0132-B1, 31P677-0132-B2, 31P677-0133-B1, 31P677-0133-B2, 31P677-0134-G1, 31P677-0134-G2, 31P677-0138-B1, 31P677-0140-B1, 31P677-0140-B2, 31P677-0141-G1, 31P677-0141-G2, 31P677-0143-B1, 31P677-0143-B2, 31P677-0494-B1, 31P677-0494-E1, 31P677-0804-B1, 31P677-0804-B2, 31P677-0804-E1, 31P677-0804-G1, 31P677-0832-B1, 31P677-0832-B2, 31P877-0036-E1, 31P877-0110-E1, 31P877-0110-E2, 31P877-0118-E1, 31P877-0118-E2, 31P877-0121-E1, 31P877-0122-B1, 31P877-0608-E1, 31P877-0608-E2, 31P977-0036-E1, 31P977-0036-G1, 31P977-0449-E1, 31P977-0575-E1, 31P977-0575-E2, 31P977-0635-E1, 31P977-0652-B1, 31P977-0670-E1, 31P977-0671-E1, 31P977-0881-B1, 31P977-1046-B1, 31P977-1066-E1, 31P977-1094-B1, 31Q677-0111-B1, 31Q677-0111-E1, 331777-0546-B1, 331777-0546-E1, 331777-0946-B1, 331777-0946-B2, 331777-0946-B4, 331777-0946-G1, 331777-0956-B1, 331777-1107-B1, 331777-1192-B1, 331877-0036-E1, 331877-0036-G1, 331877-0113-B1, 331877-0113-B2, 331877-0114-G1, 331877-0114-G2, 331877-0115-B1, 331877-0117-G1, 331877-0142-B1, 331877-0142-B2, 331877-0143-G1, 331877-0143-G2, 331877-0144-B1, 331877-0145-B1, 331877-0730-B1, 331877-0805-B1, 331877-0805-E1, 331877-0979-B1, 331877-1234-B1, 331977-0001-G1 |
| WARRANTY | 2 Year |
| SHIPPING WEIGHT | 77 |
| DISPLACEMENT | 540cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Vertical |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-5/32″ |
| CRANKSHAFT LENGTH | 3-5/32″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Plain |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL TANK | No |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 48 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Choke-A-matic |
| MAX RPM | 3600 |
| CHARGING SYSTEM | 9 |
| BOLT CIRCLE | 10″ |
| FLYWHEEL | Heavy |
| PTO HEIGHT | N/A |
