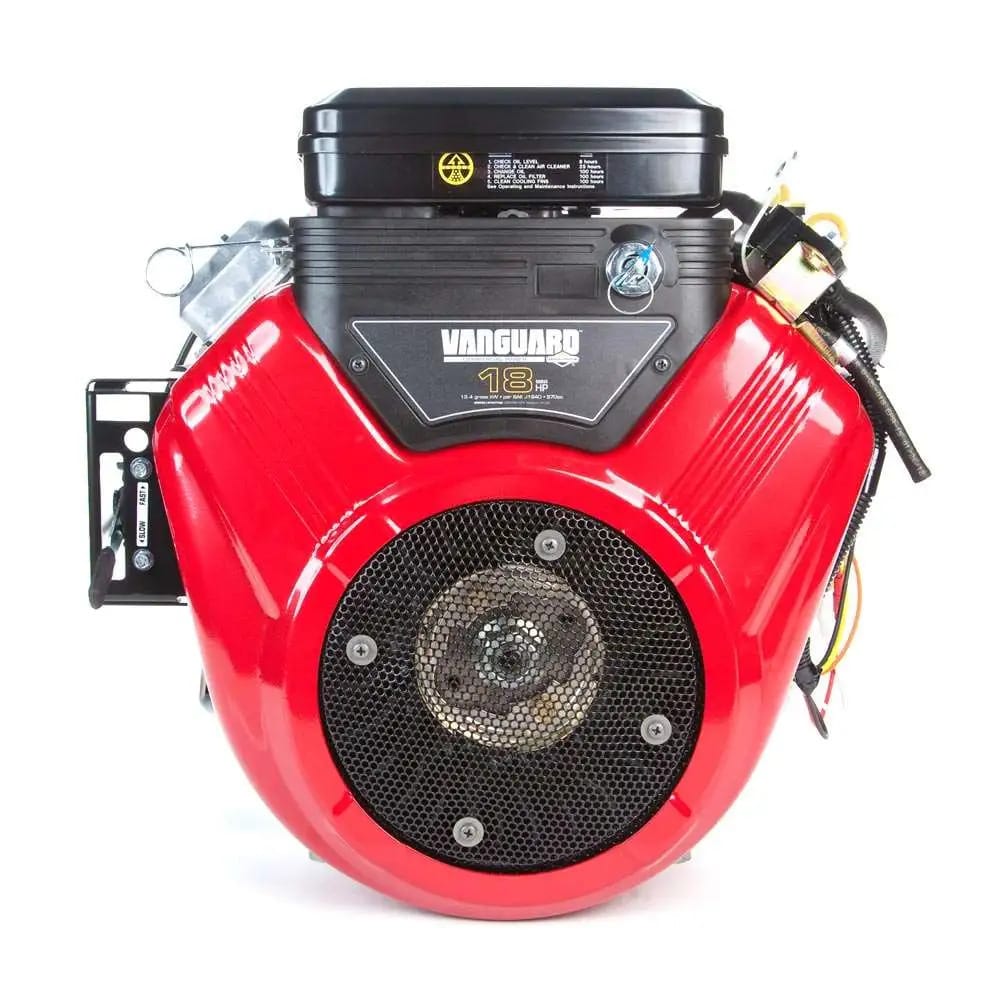

Briggs Stratton Vanguard 356447 3079 G1 570cc

Name: Briggs Stratton Vanguard 356447 3079 G1 570cc - Nertool.com
Brand: Briggs & Stratton
SKU: 84330625
Price: 940.00 USD
Availability: InStock

Sku: 84330625

$940.00

Available in stock

Compare Wishlist

Brand: Briggs & Stratton

Description
Reviews (0)

Description

Briggs Stratton Vanguard 356447 3079 G1 570cc

BRAND	Briggs Stratton
MODEL NUMBER	356447-3079-G1
REPLACES MODELS	356447-0135-E1, 356447-0135-G1, 350447-1240-E1, 350447-1225-E1, 350447-1225-A1, 350447-1224-E1, 350447-1224-A1, 350447-1217-E1, 350447-1217-A1, 350447-1206-E1, 350447-1199-E1, 350447-1199-A1, 350447-1198-E1, 350447-1198-A1, 350447-1195-E1, 350447-1195-A1, 350447-1191-E1, 350447-1191-A1, 350447-1189-A1, 350447-1184-A1, 350447-1176-E1, 350447-1176-A1, 350447-1173-E1, 350447-1173-A1, 350447-1171-E1, 350447-1171-A1, 350447-1170-A1, 350447-1169-E1, 350447-1169-A1, 350447-1166-A1, 350447-1158-E1, 350447-1158-A1, 350447-1154-A1, 350447-1153-A1, 350447-1148-A1, 350447-1145-E3, 350447-1145-E1, 350447-1145-A3, 350447-1145-A1, 350447-1144-A1, 350447-1139-E1, 350447-1139-A1, 350447-1136-A1, 350447-1134-A1, 350447-1133-E2, 350447-1133-A2, 350447-1133-A1, 350447-1128-E1, 350447-1128-A1, 350447-1119-A1, 350447-1118-E1, 350447-1118-A1, 350447-1115-A1, 350447-1111-E1, 350447-1109-E1, 350447-1108-E1, 350447-1084-E1, 350447-1084-A1, 350447-1079-E1, 350447-1079-A1, 350447-1064-E2, 350447-1064-E1, 350447-1064-A4, 350447-1064-A3, 350447-1064-A2, 350447-1064-A1, 350447-1013-E1, 350447-1013-A1, 350447-1010-E2, 350447-1010-A2, 350447-0166-01, 350447-0163-01, 350447-0158-01, 350447-0154-01, 350447-0153-01, 350447-0148-01, 350447-0145-01, 350447-0144-01, 350447-0139-01, 350447-0136-01, 350447-0134-01, 350447-0133-01, 350447-0128-01, 350447-0127-01, 350447-0126-01, 350447-0124-01, 350447-0119-01, 350447-0118-01, 350447-0117-01, 350447-0115-01, 350447-0114-01, 350447-0112-01, 350447-0110-01, 350447-0109-01, 350447-0084-01, 350447-0079-01, 350447-0064-04, 350447-0064-03, 350447-0064-02, 350447-0064-01, 350447-0010-02, 350445-1245-E1, 356447-0079
WARRANTY	3 Year Consumer & Commercial
SHIPPING WEIGHT	91
DISPLACEMENT	570cc
STARTER TYPE	Electric
CRANKSHAFT ORIENTATION	Horizontal
CRANKSHAFT TYPE	Straight
FUEL SYSTEM	Gasoline
GEAR REDUCTION	No
CRANKSHAFT DIMENSIONS	1″ x 2-29/32″
CRANKSHAFT LENGTH	2-29/32″
CRANKSHAFT END TAPPED SIZE	3/8 – 24
CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)	Counterclockwise
BEARING TYPE	Ball
CYLINDERS	2
CYLINDER BORE TYPE	Cast Iron Sleeve
AIR CLEANER TYPE	Dual Element
FUEL TANK	No
FUEL PUMP	Yes
OIL COOLER	No
OIL CAPACITY	48
LOW OIL ALERT	No
LOW OIL SHUTDOWN	No
IGNITION SYSTEM	Electronic
CARBURETOR TYPE	Float
CHOKE CONTROL	Manual and Remote
MAX RPM	3600
CHARGING SYSTEM	16
BOLT CIRCLE	5, 6-1/2, 7-3/4
FLYWHEEL	Heavy
PTO HEIGHT	5 – 1/4
