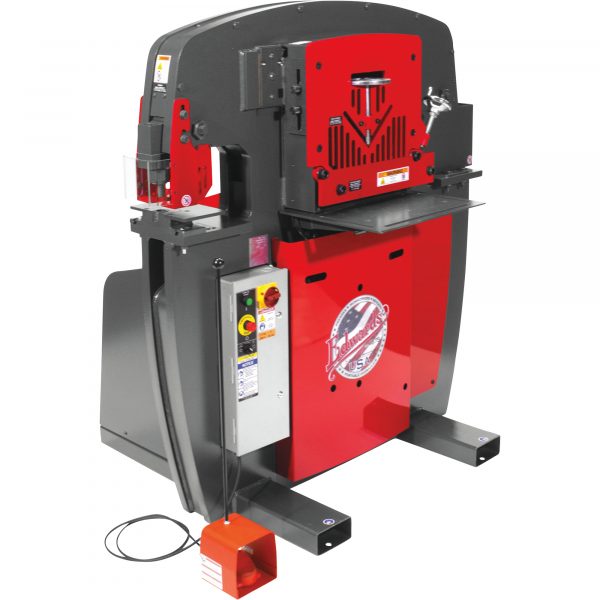

The Edwards JAWS 100-Ton Ironworker with Accessory Pack is a powerful workhorse that gives you the punch you need along with the versatility to accomplish a variety of large tasks. Features 4 available workstations including punch assembly, flat bar shear, angle shear, and universal open tooling station. ANSI B11.5-1988R(02) compliant. ETL/UL approved controls. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) 100-ton Ironworker
Product Manual A Product Manual B
| Item# | 57695 |
| Brand | Edwards Ironworkers |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 4650.0 lbs |
| Horsepower | 5 |
| Volts | 230 |
| Phase | Single |
| Amps | 23 |
| Hydraulic Pump | 10 1/2 GPM, 2-stage |
| Valve Pressure | 3,500 PSI |
| Cylinder | 3 1/2 in. ram |
| Resevoir | 17 gal. |
| Throat Depth (in.) | 10 |
| Punching Pressure (Tons) | 100 |
| Flat Bar Shearing Capacity (in.) | 3/4 x 14, 1 x 10 |
| Square/Round Shear Capacity (in.) | 1 1/4 |
| Angle Shear Capacity (in.) | 6 x 6 x 1/2 |
| Coper Notcher Capacity (in.) | Optional |
| Dimensions L x W x H (in.) | 46 x 69 x 67 |
| Product Weight | 4,650 lb |
