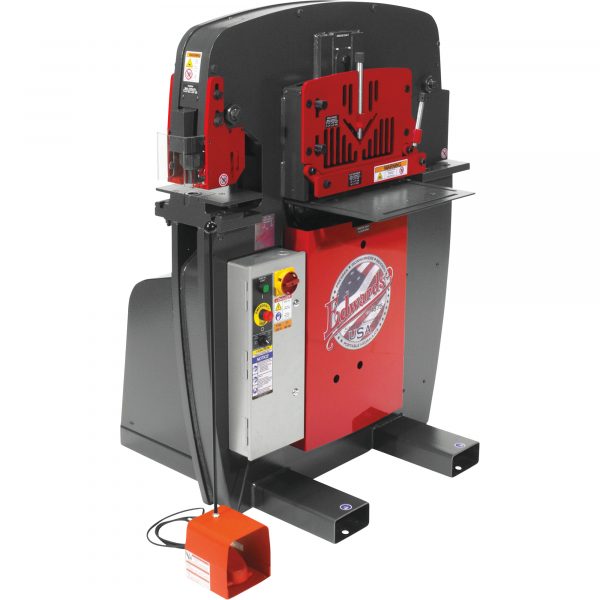

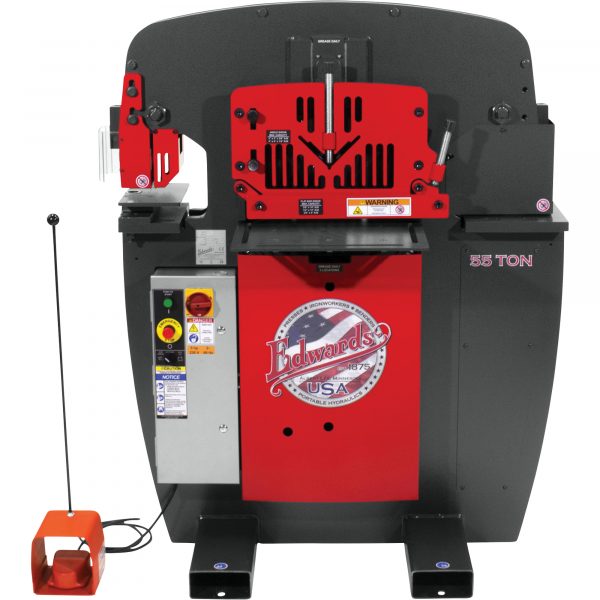

The Edwards JAWS 55-Ton Ironworker with Accessory Pack is an ideal choice for any fabrication shop, large or small. Features 4 available workstations including punch assembly, flat bar shear, angle shear, and universal open tooling station. ANSI B11.5-1988R(02) compliant. ETL/UL approved controls.
What’s Included
- (1) 55-ton Ironworker
Product Manual A Product Manual B
| Item# | 57703 |
| Brand | Edwards Ironworkers |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 2480.0 lbs |
| Horsepower | 5 |
| Volts | 230 |
| Phase | Single |
| Amps | 23 |
| Hydraulic Pump | 3 1/2 GPM, single stage |
| Valve Pressure | 2,500 PSI |
| Cylinder | 2 1/2 in. ram |
| Resevoir | 7 gal. |
| Throat Depth (in.) | 7 1/2 |
| Punching Pressure (Tons) | 55 |
| Flat Bar Shearing Capacity (in.) | 3/8 x 14, 1/2 x 12, 3/4 x 4 |
| Square/Round Shear Capacity (in.) | 7/8 |
| Angle Shear Capacity (in.) | 3 x 3 x 3/8, 4 x 4 x 1/4 |
| Coper Notcher Capacity (in.) | Optional |
| Dimensions L x W x H (in.) | 45 x 51 x 62 |
| Product Weight | 2,480 lb |
