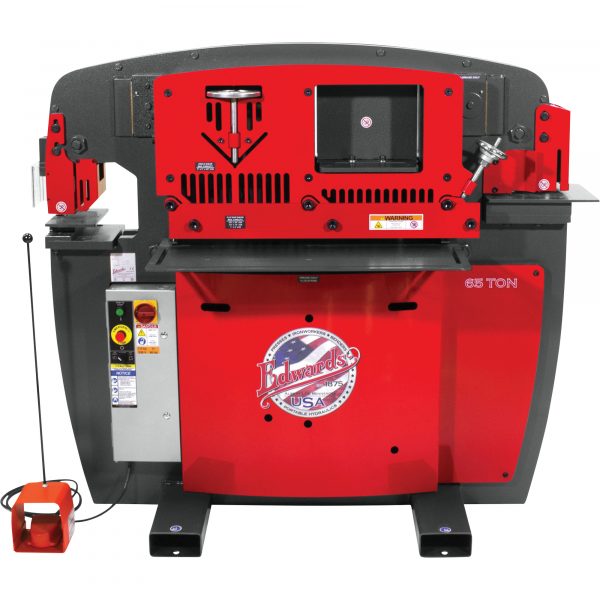

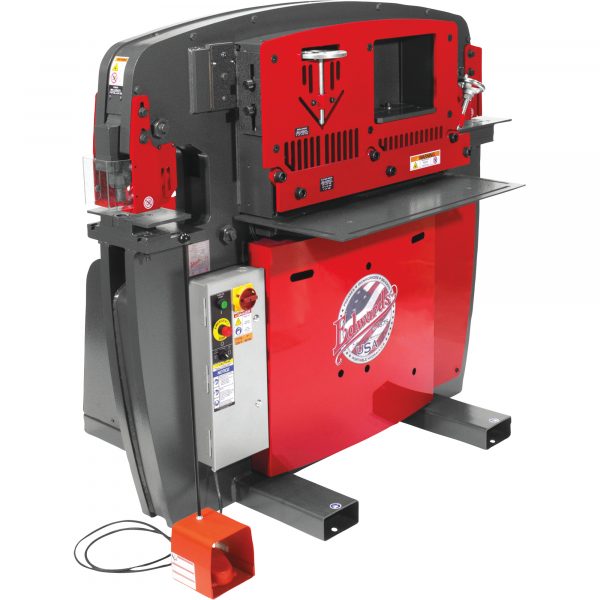

The versatile Edwards JAWS 65-Ton Ironworker packs the punch you need to get any size job done, and the flexibility to tailor it to your specific needs. Features 5 available workstations including punch assembly, flat bar shear, angle shear, coper notcher and a universal open tooling station. ANSI B11.5-1988R(02) compliant. ETL/UL approved controls. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) 65-ton Ironworker
Product Manual A Product Manual B
| Item# | 57806 |
| Brand | Edwards Ironworkers |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 4750.0 lbs |
| Horsepower | 7.5 |
| Volts | 575 |
| Phase | 3 |
| Amps | 8 |
| Hydraulic Pump | 10 1/2 GPM, 2-stage |
| Valve Pressure | 3,500 PSI |
| Cylinder | 3 1/2 in. ram |
| Resevoir | 17 gal. |
| Throat Depth (in.) | 9 3/4 |
| Punching Pressure (Tons) | 65 |
| Flat Bar Shearing Capacity (in.) | 3/8 x 24, 1/2 x 14, 1 x 4 |
| Square/Round Shear Capacity (in.) | 1 |
| Angle Shear Capacity (in.) | 5 x 5 x 3/8 |
| Coper Notcher Capacity (in.) | 3/8 |
| Dimensions L x W x H (in.) | 46 x 69 x 63 |
| Product Weight | 4,750 lb |
