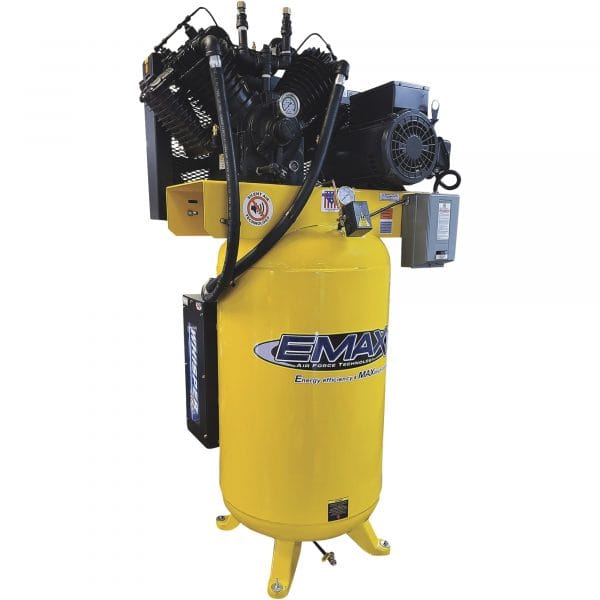

EMAX ES10V080V1 Industrial Silent Air 10 HP 2-Stage Vertical Air Compressor
| Model | ES10V080V1 |
| Brand | Emax |
| Warranty | 5 year |
| Ship Weight | 988.0 lbs |
| Horsepower | 10 |
| Air Tank Size | 80 |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 39 |
| Max. PSI | 175 |
| CFM at Max. PSI | 30 |
| Working Pressure | 145 |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 3/4 |
| Motor RPM | 1,750 |
| Motor Phase | 1 |
| Amps | 40 |
| Tank Fill Time | 4 |
| Pump Life | 50,000 |
| Pump Material | Solid cast iron |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Drain Type | Manual |
| Weight (lbs.) | 810 |
| Dimensions L x W x H (in.) | 38 x 42 x 72 |
