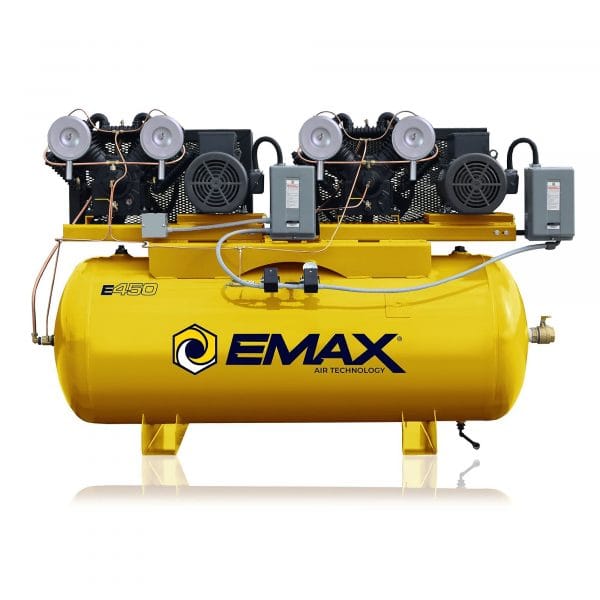

Emax ESP10D240V1 Silent V4 1PH Horizontal Dual Piston Compressor
| Model | ESP10D240V1 |
| Brand | Emax |
| Warranty | 1 year |
| Ship Weight | 1950.0 lbs |
| Horsepower | 10 HP |
| Air Tank Size | 240 Gal |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 68 |
| Max. PSI | 175 |
| CFM at 40 PSI | 99 |
| CFM at Max. PSI | 64 |
| Working Pressure | 145 PSI |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 2 in. NPT |
| Motor RPM | 1,750 |
| Motor Phase | 1 |
| Amps | 80 |
| Duty Cycle | 60 % |
| Tank Fill Time | 4 min |
| Fuel Capacity | 0 Gal |
| Pump Material | Cast Iron |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| Drain Type | Automatic |
| After Cooler Included | No |
| Air Dryer | None |
| Tank Orientation | Horizontal |
| Product Weight | 1950.0000 lb |
| Dimensions L x W x H (in.) | 96.0 x 42.0 x 64.0 in |
