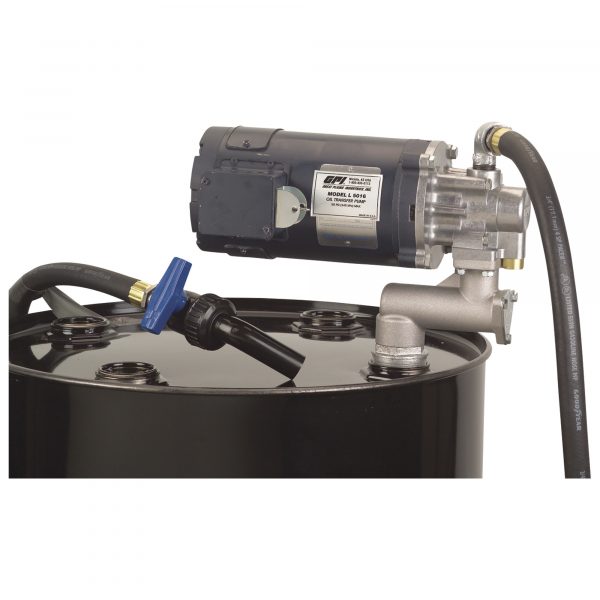

This GPI Heavy-Duty Oil Pump features a gerotor gear design and durable, lightweight cast aluminum housing. The rugged 12V DC motor delivers flow rates up to 4 GPM and is engineered for long life and limited maintenance. Ideal for use with new oil (up to 90 wt.), waste oil, hydraulic fluid and antifreeze. Comes complete with 3/4in. ball valve nozzle, 3/4in. x 8ft. hose, adjustable suction pipe (15in.-40in.), and 90° street elbow . Consider the viscosity of the fluid and temperature range when choosing the oil pump for your application. Motor is a UL recognized component and CSA approved.

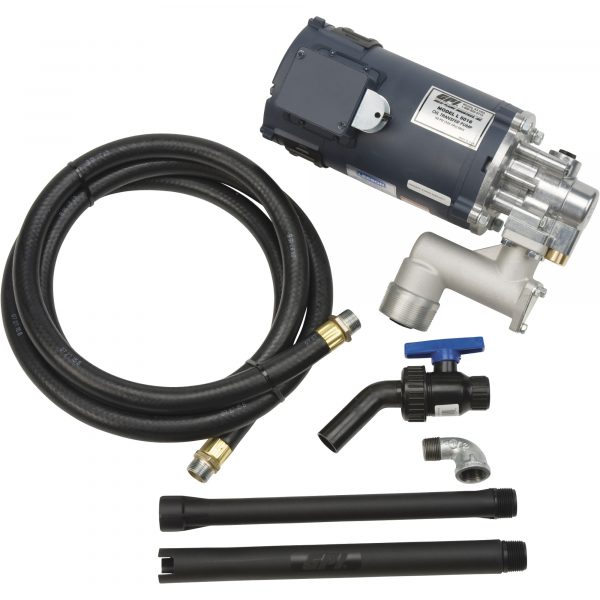

What’s Included
- (1) L5016 oil pump
- (1) 3/4in. ball valve nozzle
- (1) 3/4in. x 8ft. hose
- (1) Adjustable suction pipe (15in.-40in.)
- (1) 90° street elbow
| Item# | 360584 |
| Brand | GPI |
| Manufacturer’s Warranty | 12 months parts / 12 months labor |
| Ship Weight | 43.42 lbs |
| Horsepower | 1/2 |
| Watts | 480 |
| Flow (GPM) | 4 |
| Speed (RPM) | 1,800 |
| Amps | 40 |
| Max. Total Head (ft.) | 15 |
| Max. Suction Lift (ft.) | 10 |
| Inlet Port (in.) | 1 |
| Outlet Port (in.) | 3/4 |
| Discharge (ft.) | 5 |
| Duty Cycle | 30 min. |
| Self-Priming | Yes |
| Bypass Valve | Built-in |
| Seal Type | Nitrile |
| Nozzle Type | 1 in. ball-valve |
| Hose (in. x ft.) | 3/4 x 8 |
| Dimensions L x W x H (in.) | 19 x 16 x 13 |
