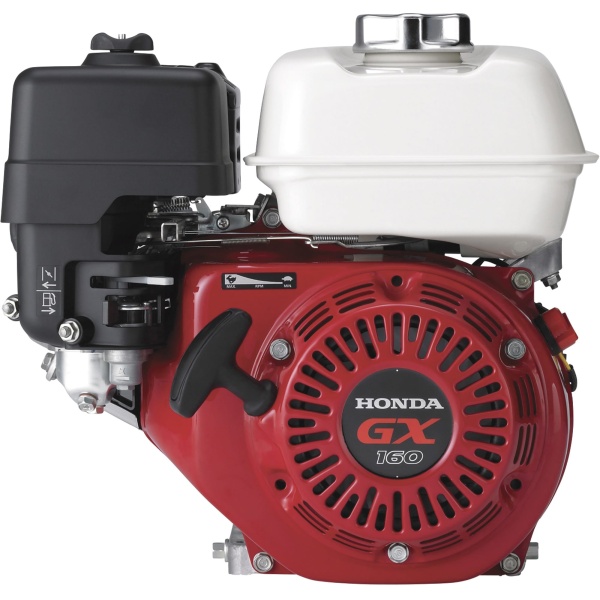

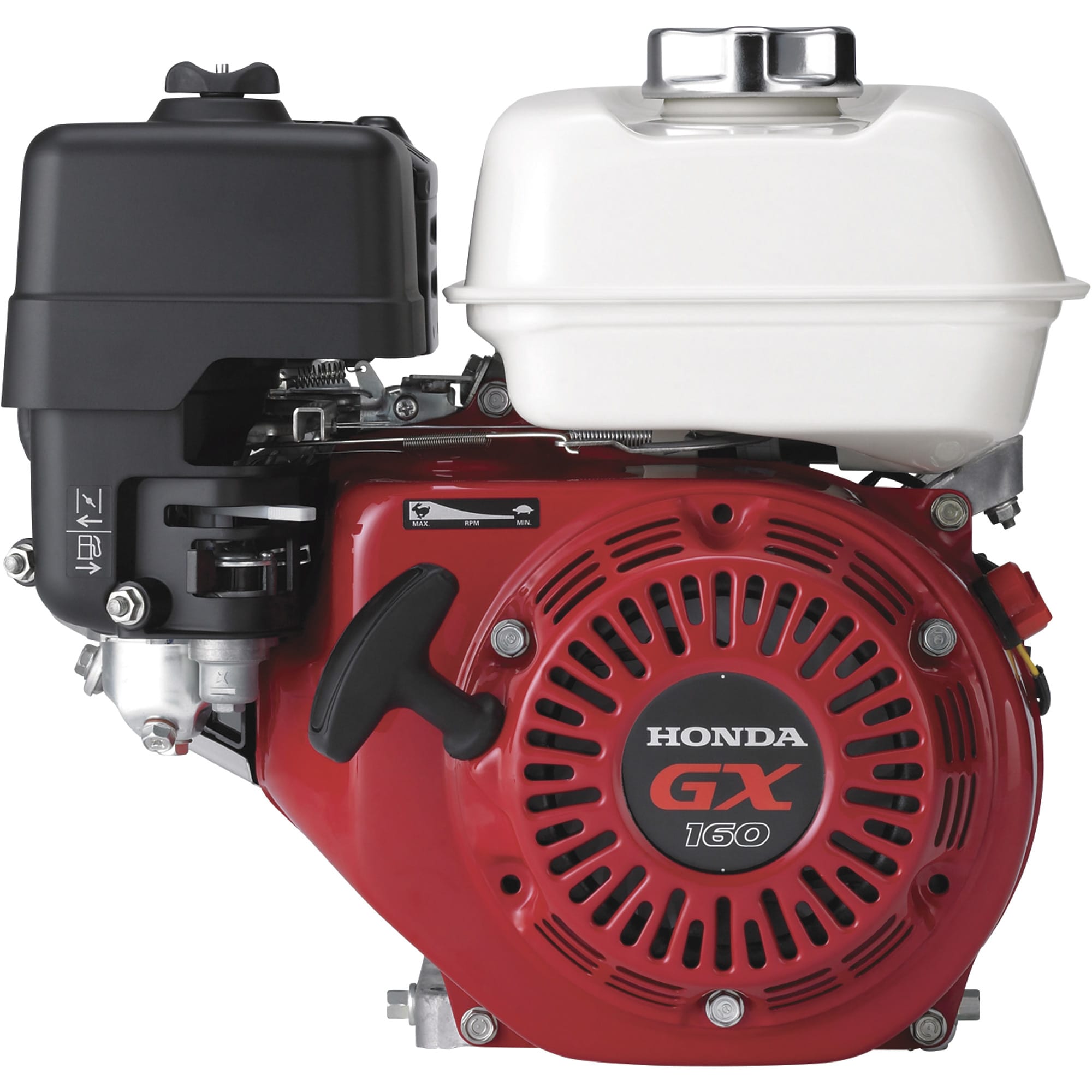

Honda GX Series Horizontal OHV Engine 163cc 3 4in x 2 7 16in Shaft Model GX160UT2QX2
| Brand | Honda Engines |
| Manufacturer’s Warranty | 3 year limited warranty |
| Ship Weight | 40.0 lbs |
| Engine Displacement | 163 cc |
| Engine Type | GX Series OHV commercial-duty |
| Net Power Output | 4.8 HP |
| Start Type | Recoil |
| Shaft Diameter | 3/4 in |
| Shaft Length | 2.43 in |
| Net Torque | 7.6 ft-lbs. |
| Shaft Output | Horizontal |
| Shaft Keyway | 0.18 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | 5/16-24 |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | Q-type |
| PTO Height | 4.17 in |
| Bearing Type | Ball |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron |
| Compression Ratio | 9:1 |
| Cooling System | Air cooled |
| Bore | 2.7 in |
| Stroke | 1.8 in |
| Air Cleaner Type | Dual element |
| Fuel Tank | Yes |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 3.3 qt |
| Oil Capacity | 0.61 qt |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Centrifugal mechanical |
| Carburetor | Float, external vent |
| Throttle Control | Remote |
| Choke Control | Manual |
| Max. RPM | 3,600 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 3.625 in |
| Mounting Base Length | 6.375 in |
| Mounting Base Width | 3.15 to 3.34 in |
| Dimensions L x W x H (in.) | 12 x 13.37 x 12.5 in |
