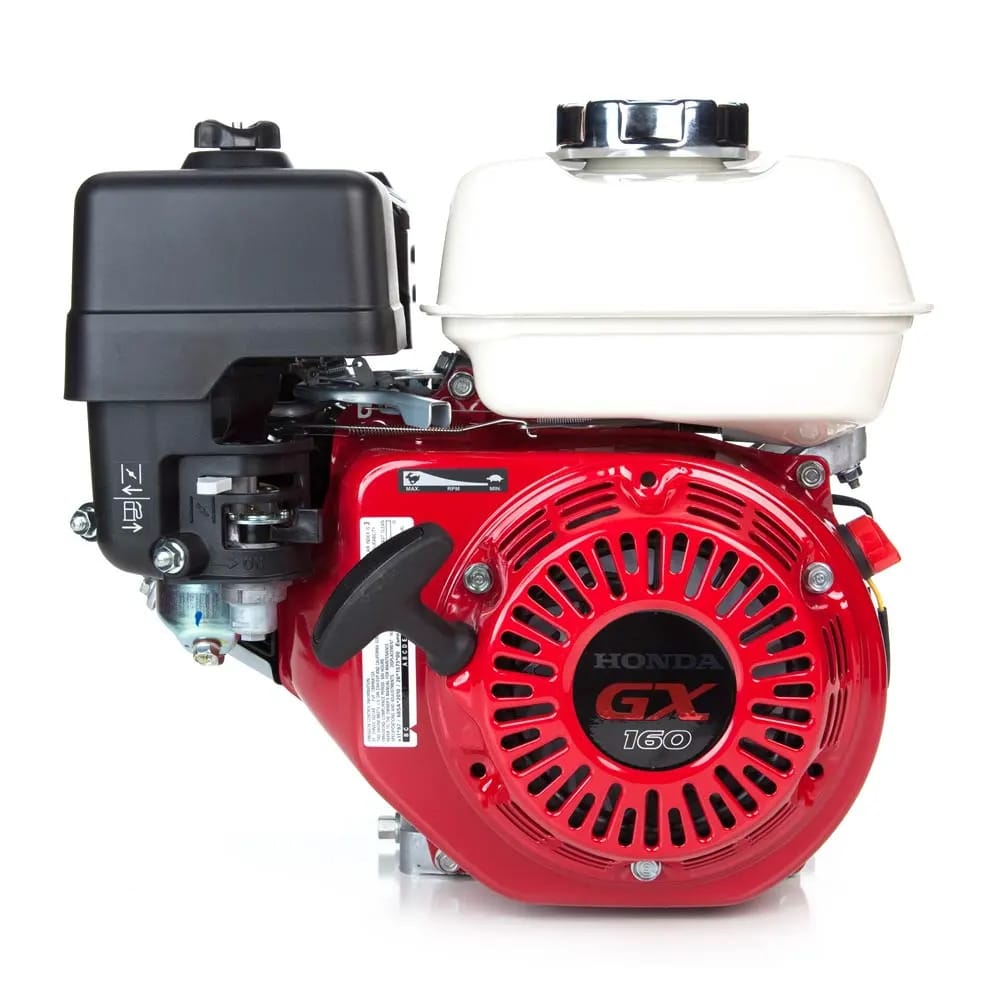

Honda GX160 HX2 Horizontal Engine
Honda GX160 HX2 (GX160UT2HX2) horizontal OHV 6:1 gear reduction engine is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4″ x 1.96″ crankshaft. The engines has a recoil start, a standard muffler, fuel tank, and oil alert system, but no clutch.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX160-HX2 |
| REPLACES MODELS | GX160U1HX2, GX160-HX2, GX160UT1HX2, GX160-UT1HX2, GX160UT1-HX2, GX160UT2HX2, GX160UT2-HX2, GX160-UT2HX2, GX160K1HX2, GX160-U1-HX2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 47 |
| DISPLACEMENT | 163cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Gear Reduction |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | 6:01 |
| CRANKSHAFT DIMENSIONS | 3/4″ x 1-31/32″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 1-31/32″ |
| CRANKSHAFT END TAPPED SIZE | N/A |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | None |
| PTO HEIGHT | 4 – 11/64 |
