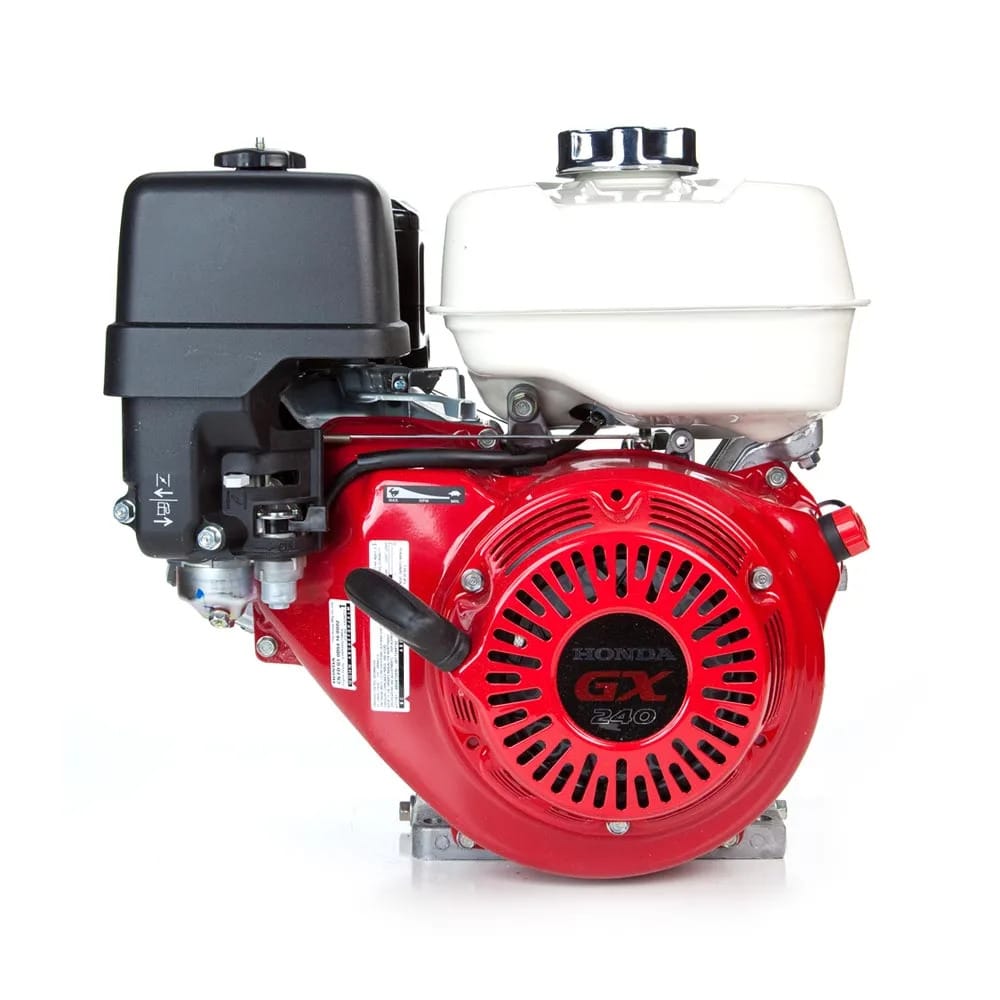

Honda GX240 QA2 Horizontal EngineHonda GX240 QA2 Horizontal Engine
Honda GX240 QA2 (GX240UT2QA2) horizontal OHV engine is 270cc and puts out 7.9 net HP. This Honda GX has a 1″ x 3-31/64″ crankshaft with a 1/4″ keyway. The engine has a recoil starter, a standard muffler with spark arrestor. exhaust pipe protector and deflector plus an oil alert system.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX240-QA2 |
| REPLACES MODELS | GX240U1QA2, GX240-QA2, GX240K1QA2, GX240UT1QA2, GX240-U1QA2, GX240U1-QA2, GX240-QA2, GX240QA2, GX240K1-QA2, GX240UT2QA2, GX240-K1-QA2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 66 |
| DISPLACEMENT | 270cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-31/64″ |
| CRANKSHAFT LENGTH | 3-31/64″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 38 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 5,6-1/2 |
| PTO HEIGHT | 5 – 1/4 |
