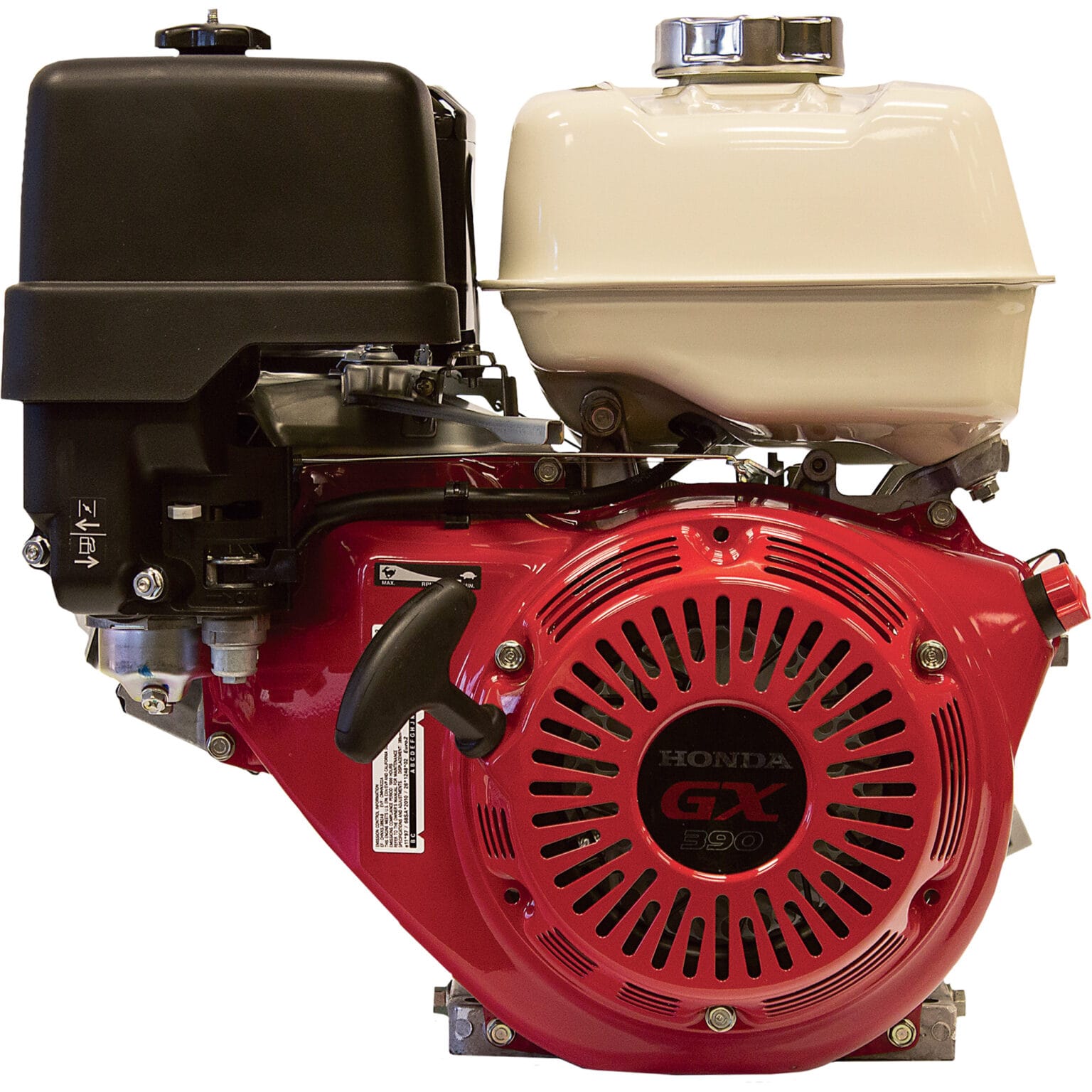

Honda Horizontal OHV Engine 389cc GX Series 1in x 3 25 64in Shaft Model GX390UT2LX2
| Brand | Honda Engines |
| Manufacturer’s Warranty | 3 year limited warranty |
| Ship Weight | 95.0 lbs |
| Engine Displacement | 389 cc |
| Engine Type | GX Series OHV commercial-duty |
| Net Power Output | 11.7 HP |
| Start Type | Recoil |
| Shaft Diameter | 1 in |
| Shaft Length | 3.23 in |
| Net Torque | 19.5 ft-lbs. |
| Shaft Output | Horizontal |
| Shaft Keyway | 0.25 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | M8 x 1.25 |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | L-type |
| PTO Height | 5.25 in |
| Bearing Type | Ball |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron |
| Compression Ratio | 8.2:1 |
| Cooling System | Air cooled |
| Bore | 3.46 in |
| Stroke | 2.5 in |
| Air Cleaner Type | Dual element |
| Fuel Tank | Yes |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 6.4 qt |
| Fuel Filter | Fuel tank filler neck strainer |
| Oil Capacity | 1.16 qt |
| Low Oil Alert | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Ignition System | Electrical, digital CDI w/variable ignition timing |
| Governor System | Centrifugal mechanical |
| Carburetor | Butterfly float |
| Throttle Control | Manual |
| Choke Control | Manual |
| Max. RPM | 3,600 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 5, 6.5 in |
| Mounting Base Length | 7.68 in |
| Mounting Base Width | 3.39 to 4.06 in |
| Dimensions L x W x H (in.) | 15.87 x 17.68 x 17.37 in |
