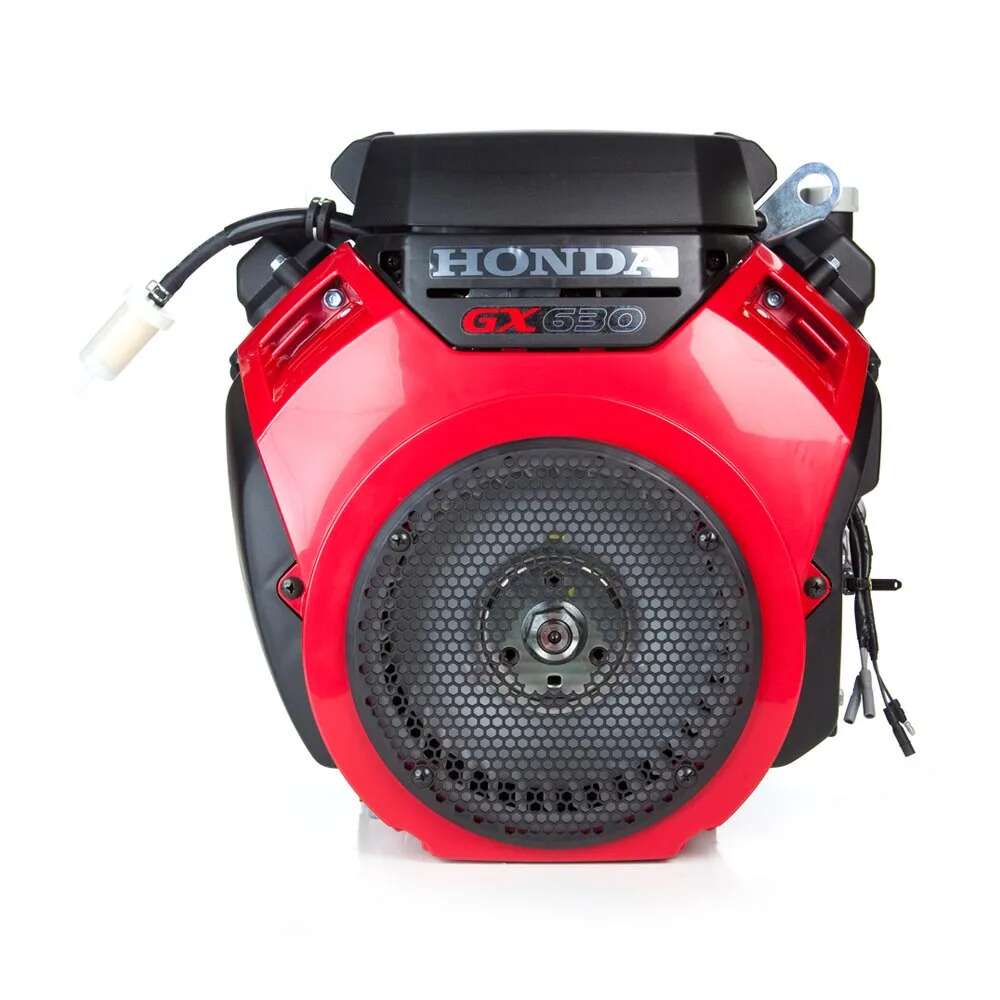

Honda GX630 QAF Horizontal Engine
The Honda GX630 QAF is a 627cc, air-cooled, horizontal-shaft engine designed for a variety of industrial and commercial applications. Known for its reliability and durability, it features a V-twin design, offering smooth operation and high torque. The engine is equipped with a semi-dry sump system, a large-capacity oil filter, and a large fuel tank for extended operation.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX630-QAF |
| REPLACES MODELS | GX620K1-QAF1, GX620-QAF1 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 110 |
| DISPLACEMENT | 688cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 2-29/32″ |
| CRANKSHAFT LENGTH | 2-29/32″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Integrated |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 68 |
| LOW OIL ALERT | Yes |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CARBURETOR TYPE | Two Barrel Float Valve, Internal Vent |
| CHOKE CONTROL | Remote (Wire) |
| BOLT CIRCLE | 5,6-1/2,7-3/4 |
| PTO HEIGHT | 5 – 1/4 |
