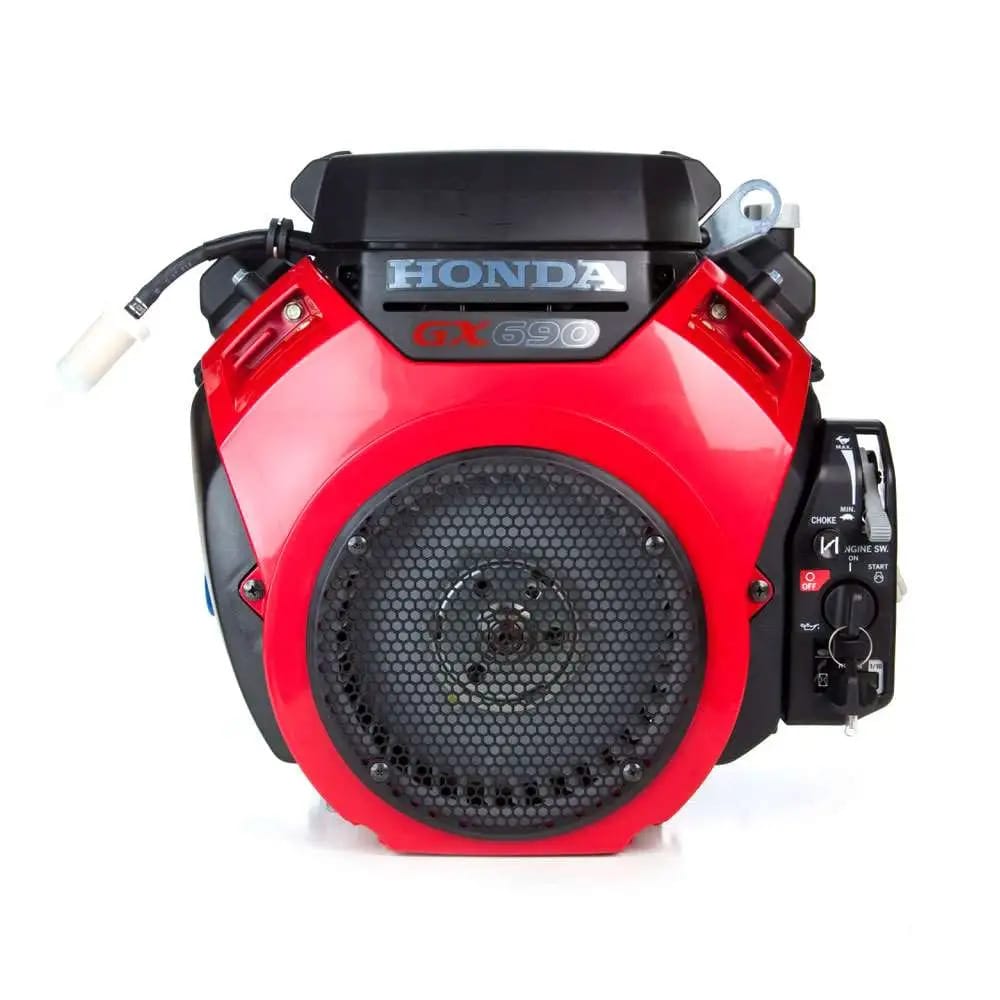

Honda GX690 TXA2 Horizontal Engine
Honda GX690 TXA2 (GX690RHTXA2) horizontal OHV V-twin engine is 688cc and puts out 22.1 net HP. This Honda GX V-Twin has a 1-1/8″ x 3.78″ crankshaft (Tapped 7/16-20). The engine has electric start, a 12V 17-amp charging system, key switch, manual choke and throttle controls, fuel pump and oil alert system.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX690-TXA2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 112 |
| DISPLACEMENT | 688cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1-1/8″ x 3.78″ |
| CRANKSHAFT DIAMETER | 1-1/8″ |
| CRANKSHAFT LENGTH | 3.78″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 68 |
| LOW OIL ALERT | Yes |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CARBURETOR TYPE | Two Barrel Float Valve, Internal Vent |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 5,6-1/2,7-3/4 |
| PTO HEIGHT | 5 – 1/4 |
