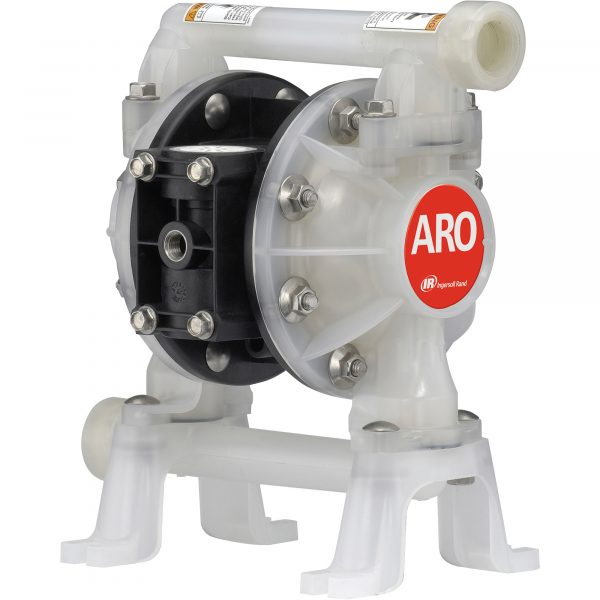

This Ingersoll Rand Air-Operated Double Diaphragm Pump delivers maximized flow rates with minimized pulsation and air consumption. Environmentally sound with bolted construction to provide maximum chemical and leak resistance. Polypropylene pump body. 100 PSI max. operating pressure. Ideal for pumping antifreeze, detergents, windshield washer fluid and other typical fluids.
What’s Included
- (1) Pump
- (1) Operation and maintenance manual
| Item# | 83699 |
| Brand | ARO Ingersoll Rand |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 7.0 lbs |
| Flow | 14.8 GPM |
| Inlet Port | 3/4 |
| Outlet Port | 3/4 |
| Diaphragm Material | Santoprene |
| Average Air Consumption | 11 CFM |
| Operating PSI | 100 |
| Max. PSI | 100 |
| Air Inlet Size NPT | 1/4 |
| Gear Ratio | 1:1 |
| Max. Fluid Temp. | 175°F |
| Pump Housing Material | Polypropylene |
| Product Weight | 7 lb |
| Dimensions L x W x H (in.) | 10 x 7 x 11 in |
