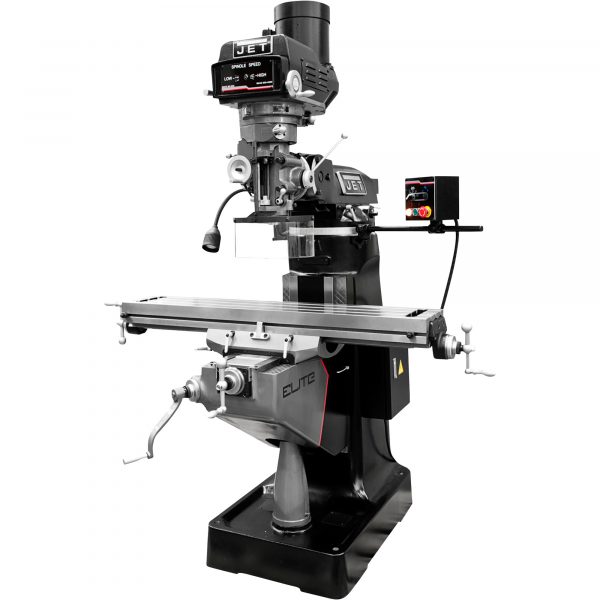

This variable speed JET Elite Mill with X, Y, Z-Axis Powerfeeds and Power Air Draw Bar is loaded with features including an extremely accurate spindle assembly to meet strict tolerance requirements. The durable design delivers reliable performance. Includes spindle safety guard. CSA/CUS certified. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) Mill with X, Y, Z Powerfeed and Power Air Draw Bar
| Item# | 79691 |
| Brand | Jet |
| Manufacturer’s Warranty | 3 year limited warranty |
| Ship Weight | 2420.0 lbs |
| Horsepower | 3 |
| Volts | 230/460 |
| Speed (RPM) | 60–4,500 |
| Speeds (qty.) | Variable |
| Vertical Stroke | 5 |
| 360° Head Swivel | 90° R/L, 45° front/back |
| Draw Bar | Yes |
| Swing | 6 1/2 in. |
| Drilling Capacity (in.) | 3 3/8 quill dia. |
| Chuck Size | Spindle Taper R-8 |
| Max. Spindle Distance | 18 3/4 |
| Worktable L x W (in.) | 9 x 49 |
| Light Included | Yes |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 68 x 63 x 84 |
| Product Weight | 2,420 lb |
