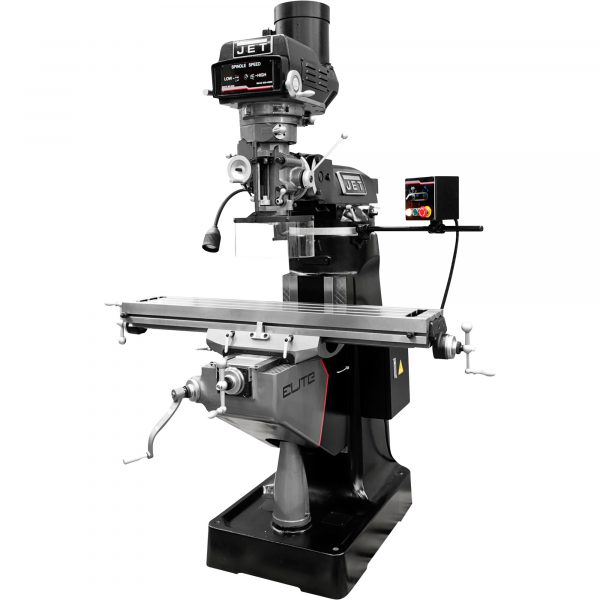

This JET Elite Metalworking Mill with 2-Axis Newall DP700 Digital Readout and Servo X, Y and Z-Axis Powerfeeds as well as a USA air powered draw bar, is a world class mill that’s fully loaded with features. The accurate spindle assembly meets strict tolerance requirements. Standard equipment includes a halogen machine lamp, dual locks on all surfaces and a spindle safety guard for operator safety. CSA/CUS Certified. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) Metalworking mill
| Item# | 79338 |
| Brand | Jet |
| Manufacturer’s Warranty | 3 year limited warranty |
| Ship Weight | 2420.0 lbs |
| Horsepower | 3 |
| Volts | 230/460 |
| Speed (RPM) | 60–4,500 |
| Speeds (qty.) | Variable |
| Vertical Stroke | 5 |
| 360° Head Swivel | 90° R/L, 45° front/back |
| Draw Bar | Yes |
| Swing | 21 13/32 in. |
| Drilling Capacity (in.) | 3 3/8 quill dia. |
| Chuck Size | Spindle Taper R-8 |
| Max. Spindle Distance | 18 3/4 |
| Worktable L x W (in.) | 9 x 49 |
| Light Included | Yes |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 68 x 63 x 84 |
| Product Weight | 2,420 lb |
