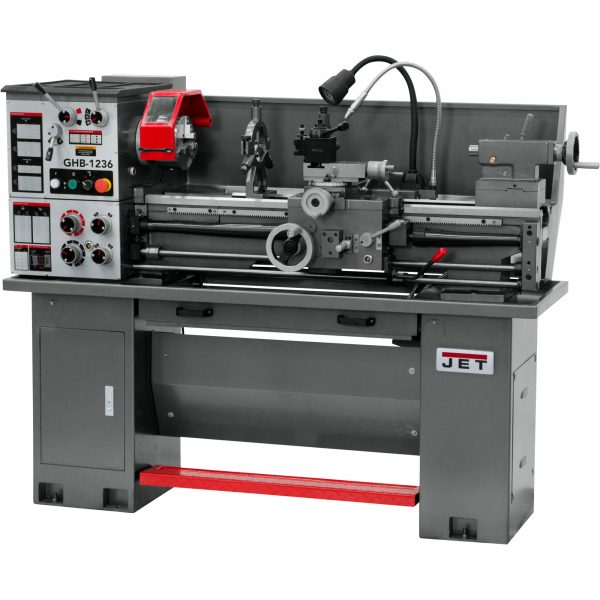

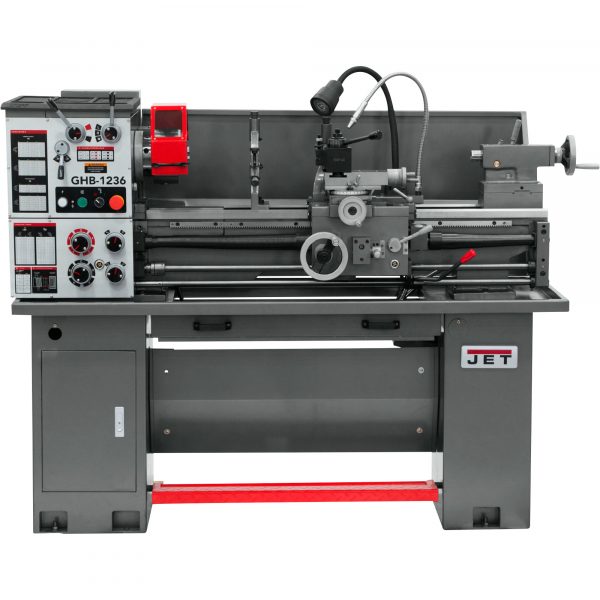

This JET Geared Head Bench Lathe with Newall DP700 digital readout system is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty stand with a newly added built-in footbrake, the lathe features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. Features 12in. swing over bed,18in. swing through gap and 33in. distance between centers. 36 threads/ 32 metric threads. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) Geared head bench lathe
| Item# | 66112 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 1297.0 lbs |
| Distance Between Centers (in.) | 33 |
| Swing Over Bed (in.) | 12 |
| Volts | 230 |
| Horsepower | 2 |
| Speed (RPM) | 75–1,400 |
| Spindle Bore (in.) | 1 9/16 |
| Spindle Mount | D1-4 |
| Carriage Travel (in.) | 27 3/8 |
| Thread Cutting (in.) | 4-60 |
| Thread Cutting (mm) | 0.4-7 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 66 x 30 x 58 |
| Product Weight | 1,297 lb |
