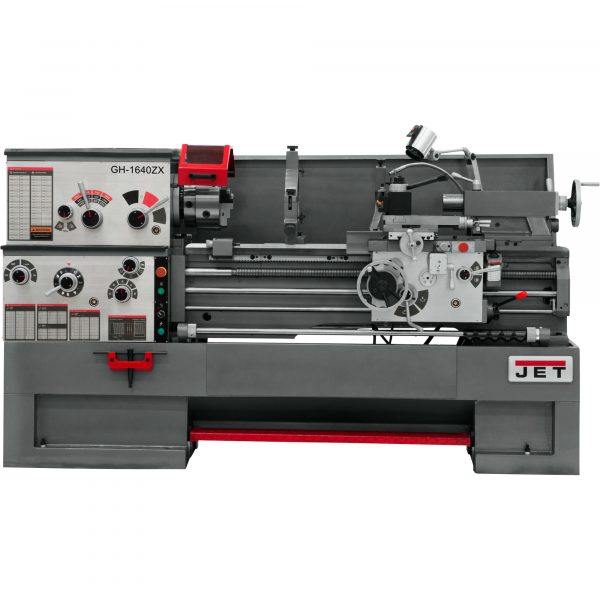

This JET ZX-Series Large Spindle Bore Lathe with Acu-Rite 200S Digital Readout System provides power, precision, efficiency and reliability to your metal shop. A 1-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. Features a 16in. swing over bed and 40in. distance between centers. 61 inch threads/ 24 metric threads.
What’s Included
- (1) Large spindle bore lathe
- (1) Accu-Rite 200S DRO
| Item# | 66102 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 6000.0 lbs |
| Distance Between Centers (in.) | 40 |
| Swing Over Bed (in.) | 16 |
| Volts | 230/460 |
| Horsepower | 7.5 |
| Speed (RPM) | 25–1,800 |
| Spindle Bore (in.) | 3 1/8 |
| Spindle Mount | D1-8 |
| Carriage Travel (in.) | 35 |
| Thread Cutting (in.) | 1 5/8-72 |
| Thread Cutting (mm) | 0.05–20 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 94x 44 x 66 |
| Product Weight | 5,475 lb |
