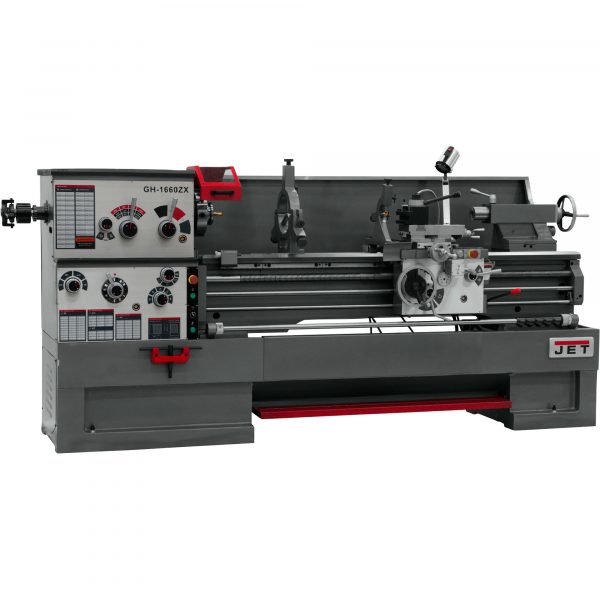

This JET ZX Series Large Spindle Bore Lathe with Taper Attachment and Collet Closer provides power, precision, efficiency and reliability to any metal shop. A 1-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. 16in. swing over bed, 25 1/2in. swing through gap, 60in. distance between centers, 3 1/8in. spindle bore, 7 1/2 HP, 230/460V, 3-phase motor. Loaded with features and backed by an industry-leading 2-year limited warranty.
What’s Included
- (1) Large spindle bore lathe with Taper Attachment and Collet Closer
| Item# | 71298 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 6200.0 lbs |
| Distance Between Centers (in.) | 60 |
| Swing Over Bed (in.) | 16 |
| Volts | 230/460 |
| Horsepower | 7.5 |
| Speed (RPM) | 25–1,800 |
| Spindle Bore (in.) | 3 1/8 |
| Spindle Mount | D1-8 |
| Carriage Travel (in.) | 55 9/16 |
| Thread Cutting (in.) | 1 5/8-72 |
| Thread Cutting (mm) | 0.05–20 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 115 x 44 x 66 in |
| Product Weight | 5,795 lb |
