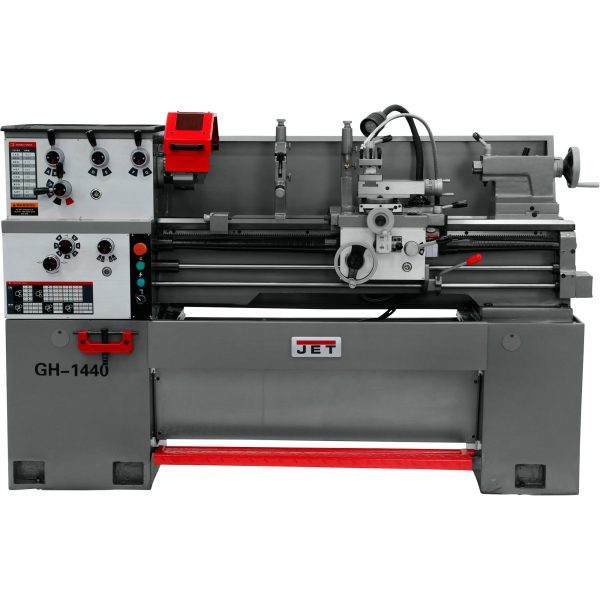

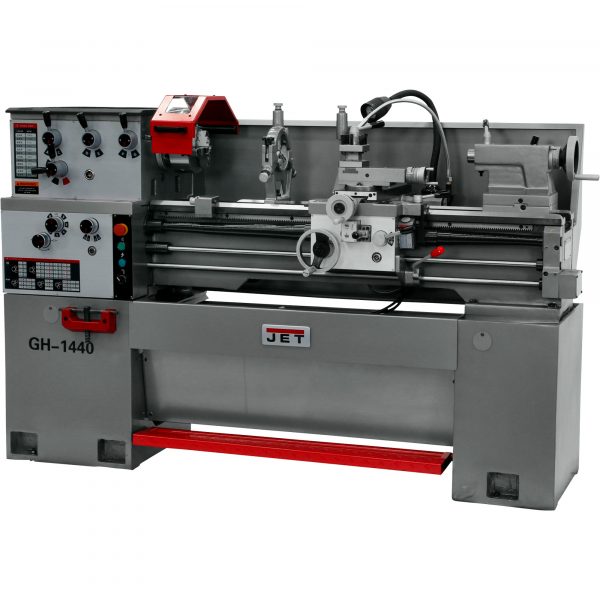

This 14in. x 40in. JET Geared-Head Engine Lathe with Acu-Rite 203 DRO, Taper Attachment and Collet Closer comes equipped with a precision induction hardened ground bed-way, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. Patented electronic chuck key docking station prevents startup without the chuck key when safely docked. 2-year warranty. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) Geared-head engine lathe with Acu-Rite 203 DRO, taper attachment and collet closer
| Item# | 70597 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 2336.0 lbs |
| Distance Between Centers (in.) | 40 |
| Swing Over Bed (in.) | 14 |
| Volts | 230 |
| Horsepower | 3 |
| Speed (RPM) | 40–1,800 |
| Spindle Bore (in.) | 1 1/2 |
| Spindle Mount | D1-4 |
| Carriage Travel (in.) | 37 1/2 |
| Thread Cutting (in.) | 4–112 |
| Thread Cutting (mm) | 0.45–7.5 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 74 4/5 x 28 x 46 |
| Product Weight | 2,336 lb |
