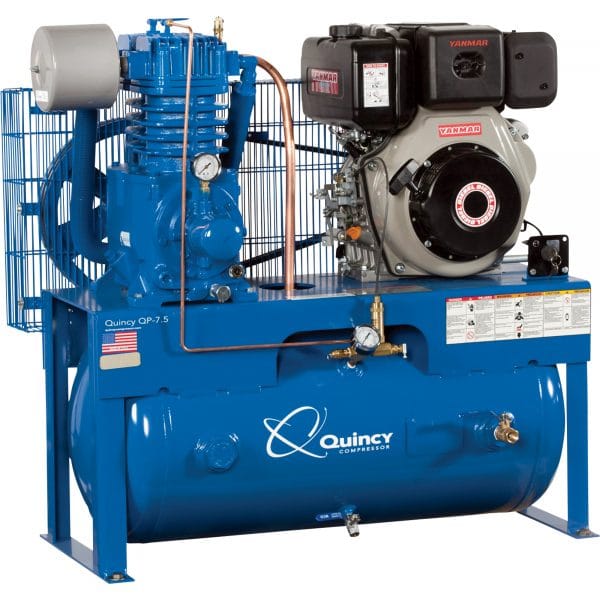

Quincy D307Y30HCD Pressure Lubricated Reciprocating Air Compressor
| Item# | D307Y30HCD |
| Brand | Quincy |
| Warranty | 5-year |
| Ship Weight | 550.0 lbs |
| Air Tank Size | 30 Gal |
| Engine Brand | Yanmar |
| Engine Displacement | 23.7 cu. inch |
| Max. PSI | 175 |
| CFM at Max. PSI | 22 |
| Working Pressure | 135–175 PSI |
| Engine Start Type | Electric |
| Stage | 2 |
| Drive Style | Belt |
| Duty Cycle | 100 % |
| Air Outlet Size | 3/4 in. NPT |
| Fuel Capacity | 1.72 Gal |
| Pump Life | 50,000+ hr |
| Pump Material | Cast iron |
| Low Oil Protection | No |
| Lubrication System | Pressure |
| Drain Type | Manual ball valve |
| After Cooler Included | No |
| Tank Orientation | Horizontal |
| Dimensions L x W x H (in.) | 42 x 21 x 40 |
