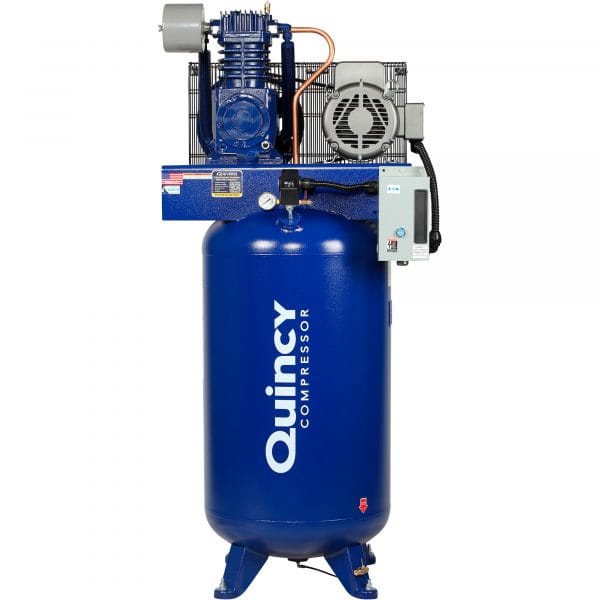

Quincy QT-7.5 271CS80VCB Splash Lubricated Reciprocating Air Compressor
| Model | 271CS80VCB |
| Brand | Quincy |
| Warranty | 5-year |
| Ship Weight | 720.0 lbs |
| Horsepower | 7.5 |
| Air Tank Size | 80 |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 23.6 @ 100 PSI |
| Max. PSI | 175 |
| CFM at Max. PSI | 22.6 |
| Working Pressure | 135–175 |
| Air Outlet Size | 3/4 |
| Motor RPM | 1,725 |
| Motor Phase | 1 |
| Amps | 28 |
| Duty Cycle | 100 % |
| Pump Life | 50,000+ hr |
| Pump Material | Cast iron w/aluminum head |
| Noise Level (dB) | 80–85 |
| Oil Required | Yes |
| Lubrication System | Splash |
| Drain Type | Manual |
| Weight (lbs.) | 720 |
| Dimensions L x W x H (in.) | 37 x 24 x 74 |
