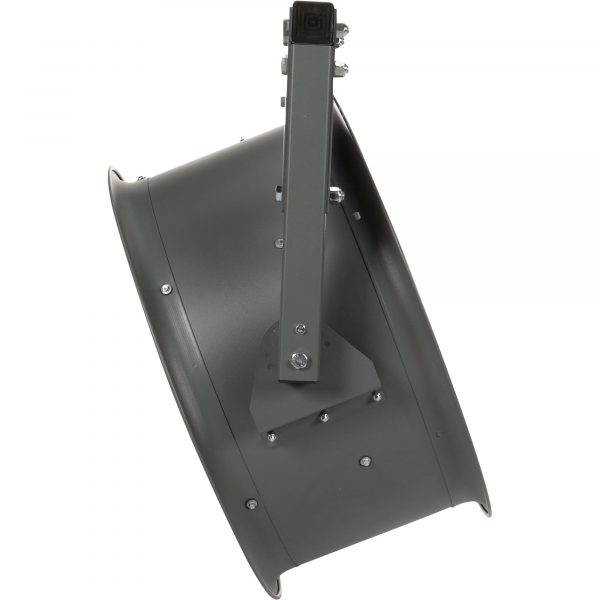

The TPI HV Series Industrial High-Velocity Fan is ETL C/US listed for indoor spot cooling applications. It is ideal for warehouse, material handling, and high-shelf areas for directing high volumes of airflow down aisles, loading dock areas, conveyor systems, processing centers, workstations, jobsites, and all types of industrial operations and rugged environments. Its 20-gauge all-steel housing with gray epoxy powder-coated finish is designed to last. The heavy-duty yoke mounting bracket design features a 2in. square steel tubing frame.
The direct drive, totally enclosed air-over (TEAO), single-speed motor generates up to 9,000 CFMs. The ball bearing, with split capacitor, is permanently lubricated. The motor operates on 60HZ and 1725 RPMs, and requires hard-wired connection to the supplied electrical enclosure is located on the motor housing. Aluminum 3-paddle blade system includes steel hub and cast aluminum spider connections and an 24in. non-oscillating fan head.
What’s Included
- (1) High-velocity blower
| Item# | 99666 |
| Brand | TPI |
| Manufacturer’s Warranty | 2 year commercial limited |
| Ship Weight | 68.0 lbs |
| Fan Diameter (in.) | 24in. non-oscillating fan head |
| Air Delivery (CFM) | 5,290 |
| Volts | 480 |
| Horsepower | 1/2 |
| Watts | 373 |
| Amps | 1.5/.08 |
| Speeds (qty.) | 1 |
| Power Cord (ft.) | 373 |
| Product Weight | 65 lb |
| Dimensions L x W x H (in.) | 13.5 x 33.31 x 31.43 in |
