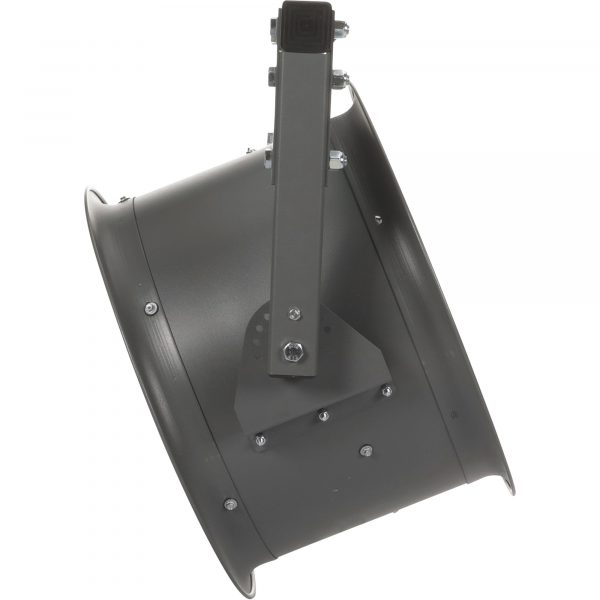

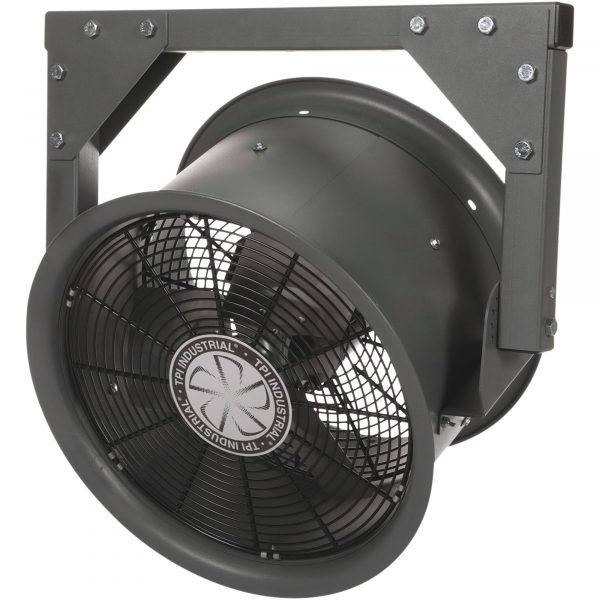

The TPI HV Series Industrial High-Velocity Fan ETL C/US listed for indoor spot cooling applications. It is ideal for warehouse, material handling, and high-shelf areas for directing high volumes of airflow down aisles, loading dock areas, conveyor systems, processing centers, workstations, jobsites, and all types of industrial operations and rugged environments. Its 20-gauge all-steel housing with gray epoxy powder-coated finish is designed to last. The heavy-duty yoke mounting bracket design features a 2in. square steel tubing frame.
The direct drive, totally enclosed air-over (TEAO), single-speed 3-phase motor generates up to 3000 CFMs. The ball bearing, with split capacitor, is permanently lubricated. The motor operates on 60HZ and 1725 RPMs, and requires hard-wired connection to the supplied electrical enclosure is located on the motor housing. Aluminum 3-paddle blade system includes steel hub and cast aluminum spider connections and an 18in. non-oscillating fan head.
What’s Included
- (1) High-velocity blower
| Item# | 99661 |
| Brand | TPI |
| Manufacturer’s Warranty | 2 year commercial limited |
| Ship Weight | 55.0 lbs |
| Fan Diameter (in.) | 18 |
| Air Delivery (CFM) | 3,000 |
| Volts | 480 |
| Horsepower | 1/2 |
| Watts | 373 |
| Amps | 1.4/0.8 |
| Speeds (qty.) | 1 |
| Product Weight | 52 lb |
| Dimensions L x W x H (in.) | 13.5 x 27.43 x 26 in |
