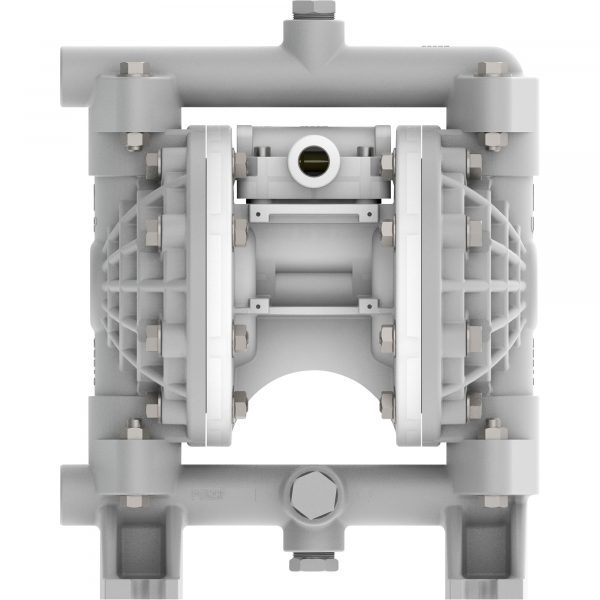

This air-operated Versa-Matic Double Diaphragm Pump with 1/2in. inlet and outlet ports and 15 GPM flow rate features an externally serviceable air distribution system and all-bolted construction. The self-priming pump can run dry without damage and is capable of deadheading against a closed discharge, eliminating the need for bypass or pressure relief valves. A seal-less design and corrosion-resistant materials make the pump ideal for the handling of solids and for high-suction lift applications such as transferring antifreeze, ATF, light-viscosity petroleum and synthetic-based oil and waste oils. Includes ground capability to eliminate static discharge.
What’s Included
- (1) Diaphragm pump
| Item# | 110259 |
| Brand | VersaMatic |
| Ship Weight | 8.5 lbs |
| Flow | 15 GPM |
| Inlet Port | 1/2 in |
| Outlet Port | 1/2 in |
| Diaphragm Material | Buna Nitrile |
| Average Air Consumption | 10 GPM |
| Operating PSI | 80 |
| Max. PSI | 125 |
| Air Inlet Size NPT | 0.375 in |
| Max. Fluid Temp. | 200°F |
| Pump Housing Material | Polypropylene |
| Max. Suspended Solids | 0.0625 in |
| Product Weight | 8.5 lb |
| Dimensions L x W x H (in.) | 6.25 x 8.39 x 10.05 |
